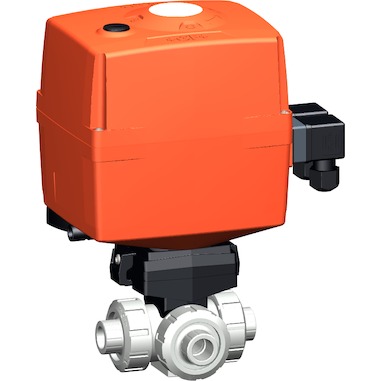

GV PVC-C typ 167 230V T-port d
- Ďalšie informácie
Ďalšie informácie
| d(mm) | 16, 20, 25, 32, 40, 50, 63 |
|---|---|
| DN | 10, 15, 20, 25, 32, 40, 50 |
| PN(bar) | 10 |
| kv-value (Δp=1 bar;l⁄min) | 1290, 140, 1910, 200, 3100, 470, 793 |
| EA | EA25 |
| Tesnenie | EPDM, FKM |
| Kat. číslo | d(mm) | DN | PN(bar) | kv-value (Δp=1 bar;l⁄min) | EA | Tesnenie | Množstvo | |
|---|---|---|---|---|---|---|---|---|
| 199 167 142 | 16 | 10 | 10 | 140 | EA25 | EPDM | ||
| 199 167 143 | 20 | 15 | 10 | 200 | EA25 | EPDM | ||
| 199 167 144 | 25 | 20 | 10 | 470 | EA25 | EPDM | ||
| 199 167 145 | 32 | 25 | 10 | 793 | EA25 | EPDM | ||
| 199 167 146 | 40 | 32 | 10 | 1290 | EA25 | EPDM | ||
| 199 167 147 | 50 | 40 | 10 | 1910 | EA25 | EPDM | ||
| 199 167 148 | 63 | 50 | 10 | 3100 | EA25 | EPDM | ||
| 199 167 152 | 16 | 10 | 10 | 140 | EA25 | FKM | ||
| 199 167 153 | 20 | 15 | 10 | 200 | EA25 | FKM | ||
| 199 167 154 | 25 | 20 | 10 | 470 | EA25 | FKM | ||
| 199 167 155 | 32 | 25 | 10 | 793 | EA25 | FKM | ||
| 199 167 156 | 40 | 32 | 10 | 1290 | EA25 | FKM | ||
| 199 167 157 | 50 | 40 | 10 | 1910 | EA25 | FKM | ||
| 199 167 158 | 63 | 50 | 10 | 3100 | EA25 | FKM |
