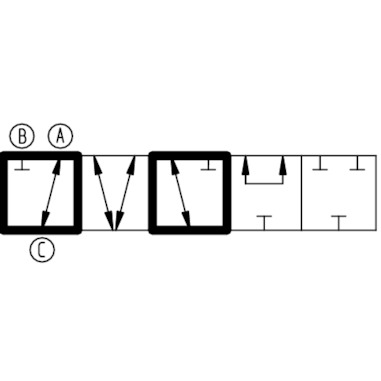

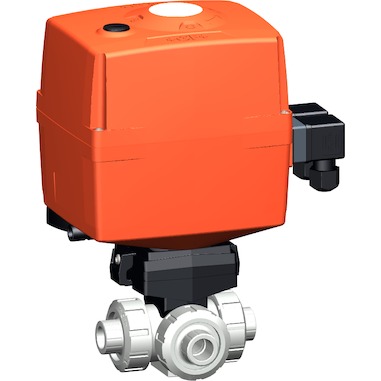

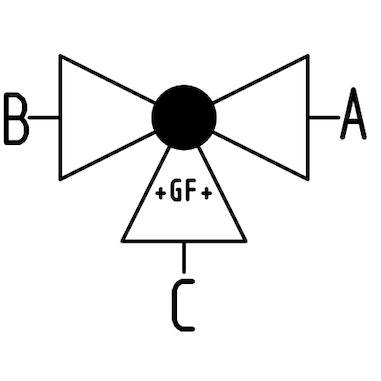

GV PVC-C typ 167 24V L-port d
- Ďalšie informácie
Ďalšie informácie
| d(mm) | 16, 20, 25, 32, 40, 50, 63 |
|---|---|
| DN | 10, 15, 20, 25, 32, 40, 50 |
| PN(bar) | 10 |
| kv-value (Δp=1 bar;l⁄min) | 1230, 150, 280, 480, 50, 620, 75 |
| EA | EA25 |
| Tesnenie | EPDM, FKM |
| Kat. číslo | d(mm) | DN | PN(bar) | kv-value (Δp=1 bar;l⁄min) | EA | Tesnenie | Množstvo | |
|---|---|---|---|---|---|---|---|---|
| 199 167 262 | 16 | 10 | 10 | 50 | EA25 | EPDM | ||
| 199 167 263 | 20 | 15 | 10 | 75 | EA25 | EPDM | ||
| 199 167 264 | 25 | 20 | 10 | 150 | EA25 | EPDM | ||
| 199 167 265 | 32 | 25 | 10 | 280 | EA25 | EPDM | ||
| 199 167 266 | 40 | 32 | 10 | 480 | EA25 | EPDM | ||
| 199 167 267 | 50 | 40 | 10 | 620 | EA25 | EPDM | ||
| 199 167 268 | 63 | 50 | 10 | 1230 | EA25 | EPDM | ||
| 199 167 272 | 16 | 10 | 10 | 50 | EA25 | FKM | ||
| 199 167 273 | 20 | 15 | 10 | 75 | EA25 | FKM | ||
| 199 167 274 | 25 | 20 | 10 | 150 | EA25 | FKM | ||
| 199 167 275 | 32 | 25 | 10 | 280 | EA25 | FKM | ||
| 199 167 276 | 40 | 32 | 10 | 480 | EA25 | FKM | ||
| 199 167 277 | 50 | 40 | 10 | 620 | EA25 | FKM | ||
| 199 167 278 | 63 | 50 | 10 | 1230 | EA25 | FKM |
