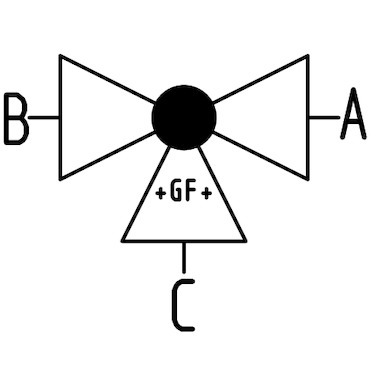

GV PVC-C typ 543 T-port Rp
- Ďalšie informácie
Ďalšie informácie
| Rp | 1 1/2", 1 1/4", 1", 1/2", 2", 3/4", 3/8" |
|---|---|
| DN | 10, 15, 20, 25, 32, 40, 50 |
| PN(bar) | 10 |
| kv-value (Δp=1 bar;l⁄min) | 1290, 140, 1910, 200, 3100, 470, 793 |
| Tesnenie | EPDM, FKM |
| Kat. číslo | Rp | DN | PN(bar) | kv-value (Δp=1 bar;l⁄min) | Tesnenie | Množstvo | |
|---|---|---|---|---|---|---|---|
| 163 546 241 | 3/8" | 10 | 10 | 140 | EPDM | ||
| 163 543 242 | 1/2" | 15 | 10 | 200 | EPDM | ||
| 163 543 243 | 3/4" | 20 | 10 | 470 | EPDM | ||
| 163 543 244 | 1" | 25 | 10 | 793 | EPDM | ||
| 163 543 245 | 1 1/4" | 32 | 10 | 1290 | EPDM | ||
| 163 543 246 | 1 1/2" | 40 | 10 | 1910 | EPDM | ||
| 163 543 247 | 2" | 50 | 10 | 3100 | EPDM | ||
| 163 543 251 | 3/8" | 10 | 10 | 140 | FKM | ||
| 163 543 252 | 1/2" | 15 | 10 | 200 | FKM | ||
| 163 543 253 | 3/4" | 20 | 10 | 470 | FKM | ||
| 163 543 254 | 1" | 25 | 10 | 793 | FKM | ||
| 163 543 255 | 1 1/4" | 32 | 10 | 1290 | FKM | ||
| 163 543 256 | 1 1/2" | 40 | 10 | 1910 | FKM | ||
| 163 543 257 | 2" | 50 | 10 | 3100 | FKM |
