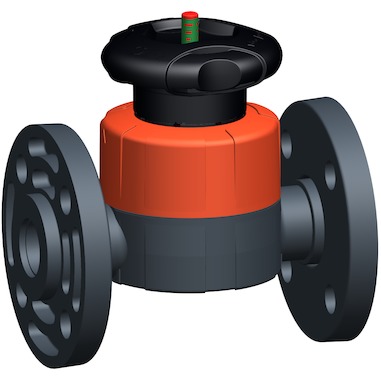

Diaphragm valve type 517 PVC-U SF With backing flanges PVC-U metric
- Ďalšie informácie
Ďalšie informácie
| d(mm) | 16, 20, 25, 32, 40, 50, 63 |
|---|---|
| DN | 10, 15, 20, 25, 32, 40, 50 |
| PN(bar) | 10 |
| kv-value (Δp=1 bar;l⁄min) | 125, 1263, 1728, 271, 481, 759 |
| Tesnenie | EPDM, FKM, NBR, PTE/FKM, PTFE/EPDM |
| Kat. číslo | d(mm) | DN | PN(bar) | kv-value (Δp=1 bar;l⁄min) | Tesnenie | Množstvo | |
|---|---|---|---|---|---|---|---|
| 161 517 022 | 20 | 15 | 10 | 125 | EPDM | ||
| 161 517 023 | 25 | 20 | 10 | 271 | EPDM | ||
| 161 517 024 | 32 | 25 | 10 | 481 | EPDM | ||
| 161 517 025 | 40 | 32 | 10 | 759 | EPDM | ||
| 161 517 026 | 50 | 40 | 10 | 1263 | EPDM | ||
| 161 517 027 | 63 | 50 | 10 | 1728 | EPDM | ||
| 161 517 072 | 20 | 15 | 10 | 125 | PTFE/EPDM | ||
| 161 517 073 | 25 | 20 | 10 | 271 | PTFE/EPDM | ||
| 161 517 074 | 32 | 25 | 10 | 481 | PTFE/EPDM | ||
| 161 517 075 | 40 | 32 | 10 | 759 | PTFE/EPDM | ||
| 161 517 076 | 50 | 40 | 10 | 1263 | PTFE/EPDM | ||
| 161 517 077 | 63 | 50 | 10 | 1728 | PTFE/EPDM |
