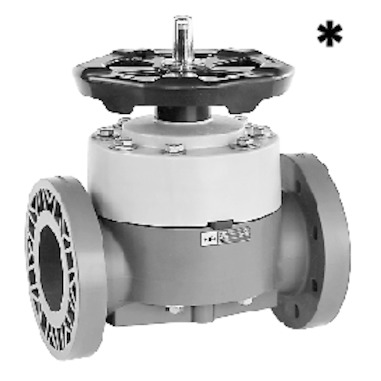

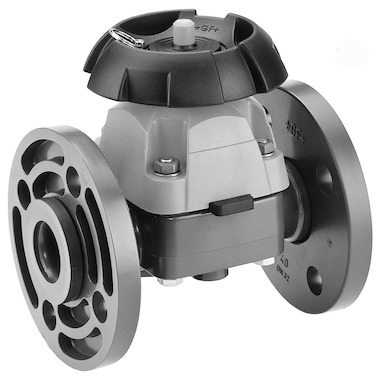

Diaphragm valve type 317 PVC-U With flanges PVC-U metric
- Ďalšie informácie
Ďalšie informácie
| d(mm) | 75, 90, 110, 160 |
|---|---|
| DN | 100, 150, 65, 80 |
| PN(bar) | 10, 7 |
| kv-value (Δp=1 bar;l⁄min) | 1700, 2700, 6033, 992 |
| Tesnenie | EPDM, FKM, NBR, PTFE/EPDM |
| Kat. číslo | d(mm) | DN | PN(bar) | kv-value (Δp=1 bar;l⁄min) | Tesnenie | Množstvo | |
|---|---|---|---|---|---|---|---|
| 161 317 512 | 160 | 150 | 7 | 6033 | NBR | ||
| 161 317 527 | 160 | 150 | 7 | 6033 | EPDM | ||
| 161 317 542 | 160 | 150 | 7 | 6033 | PTFE/EPDM | ||
| 161 317 572 | 160 | 150 | 7 | 6033 | FKM | ||
| 161 317 508 | 75 | 65 | 10 | 992 | NBR | ||
| 161 317 508 | 75 | 65 | 7 | 992 | NBR | ||
| 161 317 509 | 90 | 80 | 10 | 1700 | NBR | ||
| 161 317 509 | 90 | 80 | 7 | 1700 | NBR | ||
| 161 317 510 | 110 | 100 | 10 | 2700 | NBR | ||
| 161 317 510 | 110 | 100 | 7 | 2700 | NBR | ||
| 161 317 523 | 75 | 65 | 10 | 992 | EPDM | ||
| 161 317 523 | 75 | 65 | 7 | 992 | EPDM | ||
| 161 317 524 | 90 | 80 | 10 | 1700 | EPDM | ||
| 161 317 524 | 90 | 80 | 7 | 1700 | EPDM | ||
| 161 317 525 | 110 | 100 | 10 | 2700 | EPDM | ||
| 161 317 525 | 110 | 100 | 7 | 2700 | EPDM | ||
| 161 317 538 | 75 | 65 | 10 | 992 | PTFE/EPDM | ||
| 161 317 538 | 75 | 65 | 7 | 992 | PTFE/EPDM | ||
| 161 317 539 | 90 | 80 | 10 | 1700 | PTFE/EPDM | ||
| 161 317 539 | 90 | 80 | 7 | 1700 | PTFE/EPDM | ||
| 161 317 540 | 110 | 100 | 10 | 2700 | PTFE/EPDM | ||
| 161 317 540 | 110 | 100 | 7 | 2700 | PTFE/EPDM | ||
| 161 317 568 | 75 | 65 | 10 | 992 | FKM | ||
| 161 317 568 | 75 | 65 | 7 | 992 | FKM | ||
| 161 317 569 | 90 | 80 | 10 | 1700 | FKM | ||
| 161 317 569 | 90 | 80 | 7 | 1700 | FKM | ||
| 161 317 570 | 110 | 100 | 10 | 2700 | FKM | ||
| 161 317 570 | 110 | 100 | 7 | 2700 | FKM |
