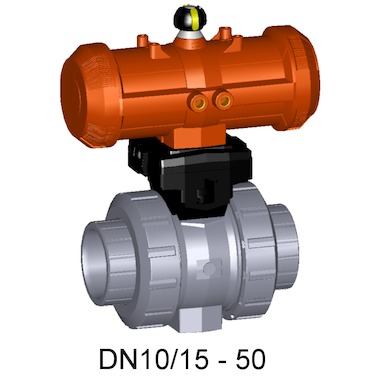

GV ABS Typ 230 FO d-d
- Popis
- Ďalšie informácie
Popis
• bez núdzovej ručnej páky
Ďalšie informácie
| d(mm) | 16, 20, 25, 32, 40, 50, 63, 75, 90, 110 |
|---|---|
| DN | 10, 100, 15, 20, 25, 32, 40, 50, 65, 80 |
| PN(bar) | 10 |
| kv-value (Δp=1 bar;l⁄min) | 1000, 11000, 1600, 185, 3100, 350, 5000, 70, 700, 7000 |
| Tesnenie | EPDM |
| Kat. číslo | d(mm) | DN | PN(bar) | kv-value (Δp=1 bar;l⁄min) | Tesnenie | Množstvo | |
|---|---|---|---|---|---|---|---|
| 199 230 871 | 110 | 100 | 10 | 11000 | EPDM | ||
| 199 230 870 | 90 | 80 | 10 | 7000 | EPDM | ||
| 199 230 869 | 75 | 65 | 10 | 5000 | EPDM | ||
| 199 230 868 | 63 | 50 | 10 | 3100 | EPDM | ||
| 199 230 867 | 50 | 40 | 10 | 1600 | EPDM | ||
| 199 230 866 | 40 | 32 | 10 | 1000 | EPDM | ||
| 199 230 865 | 32 | 25 | 10 | 700 | EPDM | ||
| 199 230 864 | 25 | 20 | 10 | 350 | EPDM | ||
| 199 230 863 | 20 | 15 | 10 | 185 | EPDM | ||
| 199 230 862 | 16 | 10 | 10 | 70 | EPDM |
