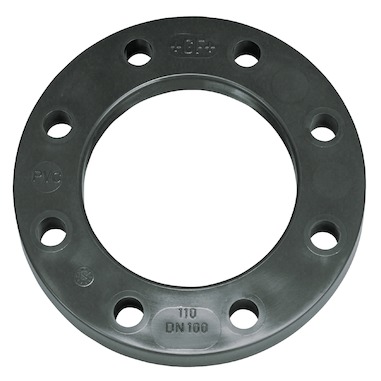

Príruba PVC-U
- Ďalšie informácie
Ďalšie informácie
| d(mm) | 355, 400, 16, 20, 25, 32, 40, 50, 63, 75, 90, 110, 125, 140, 160, 200, 225, 250, 280, 315 |
|---|---|
| DN | 10, 100, 125, 15, 150, 20, 200, 225, 25, 250, 300, 32, 350, 40, 400, 50, 65, 80 |
| PN(bar) | 10, 16, 6 |
| Kat. číslo | d(mm) | DN | PN(bar) | Množstvo | |
|---|---|---|---|---|---|
| 721 700 005 | 16 | 10 | 10 | ||
| 721 700 006 | 20 | 15 | 10 | ||
| 721 700 007 | 25 | 20 | 10 | ||
| 721 700 008 | 32 | 25 | 10 | ||
| 721 700 009 | 40 | 32 | 10 | ||
| 721 700 010 | 50 | 40 | 10 | ||
| 721 700 011 | 63 | 50 | 10 | ||
| 721 700 012 | 75 | 65 | 10 | ||
| 721 700 013 | 90 | 80 | 10 | ||
| 721 700 014 | 110 | 100 | 10 | ||
| 721 700 015 | 125 | 125 | 10 | ||
| 721 700 016 | 140 | 125 | 10 | ||
| 721 700 017 | 160 | 150 | 10 | ||
| 721 700 019 | 200 | 200 | 10 | ||
| 721 700 020 | 225 | 200 | 10 | ||
| 721 700 021 | 250 | 250 | 6 | ||
| 721 700 136 | 250 | 225 | 6 | ||
| 721 700 137 | 280 | 250 | 6 | ||
| 721 700 138 | 315 | 300 | 6 | ||
| 721 700 139 | 355 | 350 | 6 | ||
| 721 700 140 | 400 | 400 | 6 |
