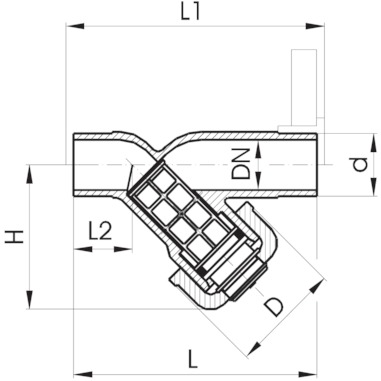

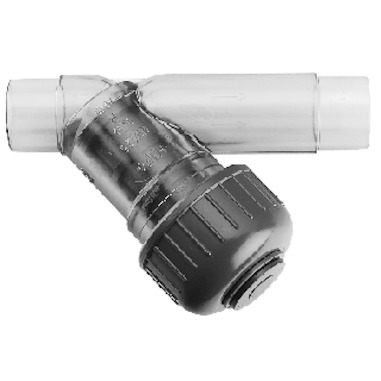

Lapač nečistôt Typ 305 PVC-U transparentný
- Popis
- Ďalšie informácie
Popis
• sitko nie je súčasťou je nutné ho objednať zvlášť
Ďalšie informácie
| d(mm) | 20, 25, 32, 40, 50, 63, 75, 90 |
|---|---|
| DN | 15, 20, 25, 32, 40, 50, 65, 80 |
| PN(bar) | 10 |
| kv-value (Δp=1 bar;l⁄min) | 150, 225, 346, 35, 535, 63, 750, 85 |
| Tesnenie | EPDM, FKM |
| Kat. číslo | d(mm) | DN | PN(bar) | kv-value (Δp=1 bar;l⁄min) | Tesnenie | Množstvo | |
|---|---|---|---|---|---|---|---|
| 192 305 300 | 20 | 15 | 10 | 35 | EPDM | ||
| 192 305 350 | 25 | 20 | 10 | 63 | EPDM | ||
| 192 305 400 | 32 | 25 | 10 | 85 | EPDM | ||
| 192 305 450 | 40 | 32 | 10 | 150 | EPDM | ||
| 192 305 500 | 50 | 40 | 10 | 225 | EPDM | ||
| 192 305 550 | 63 | 50 | 10 | 346 | EPDM | ||
| 192 305 600 | 75 | 65 | 10 | 535 | EPDM | ||
| 192 305 650 | 90 | 80 | 10 | 750 | EPDM | ||
| 192 305 349 | 20 | 15 | 10 | 35 | FKM | ||
| 192 305 399 | 25 | 20 | 10 | 63 | FKM | ||
| 192 305 449 | 32 | 25 | 10 | 85 | FKM | ||
| 192 305 499 | 40 | 32 | 10 | 150 | FKM | ||
| 192 305 549 | 50 | 40 | 10 | 225 | FKM | ||
| 192 305 599 | 63 | 50 | 10 | 346 | FKM | ||
| 192 305 649 | 75 | 65 | 10 | 535 | FKM | ||
| 192 305 699 | 90 | 80 | 10 | 750 | FKM |
