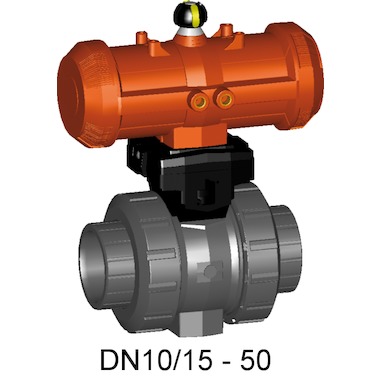

GV typ 230 FC Rp-Rp
- Ďalšie informácie
Ďalšie informácie
| Rp | 1 1∕2", 1 1∕4", 1", 1/4", 1∕2", 2 1/2", 2", 3", 3∕4", 3∕8", 4" |
|---|---|
| DN | 10, 100, 15, 20, 25, 32, 40, 50, 65, 80 |
| PN(bar) | 10 |
| kv-value (Δp=1 bar;l⁄min) | 1000, 11000, 1600, 185, 3100, 350, 5000, 70, 700, 7000 |
| Tesnenie | EPDM, FKM |
| Kat. číslo | Rp | DN | PN(bar) | kv-value (Δp=1 bar;l⁄min) | Tesnenie | Množstvo | |
|---|---|---|---|---|---|---|---|
| 199 230 662 | 3∕8" | 10 | 10 | 70 | EPDM | ||
| 199 230 663 | 1∕2" | 15 | 10 | 185 | EPDM | ||
| 199 230 664 | 3∕4" | 20 | 10 | 350 | EPDM | ||
| 199 230 665 | 1" | 25 | 10 | 700 | EPDM | ||
| 199 230 666 | 1 1∕4" | 32 | 10 | 1000 | EPDM | ||
| 199 230 667 | 1 1∕2" | 40 | 10 | 1600 | EPDM | ||
| 199 230 668 | 2" | 50 | 10 | 3100 | EPDM | ||
| 199 230 669 | 2 1/2" | 65 | 10 | 5000 | EPDM | ||
| 199 230 670 | 3" | 80 | 10 | 7000 | EPDM | ||
| 199 230 671 | 4" | 100 | 10 | 11000 | EPDM | ||
| 199 230 672 | 3∕8" | 10 | 10 | 70 | FKM | ||
| 199 230 673 | 1∕2" | 15 | 10 | 185 | FKM | ||
| 199 230 674 | 3∕4" | 20 | 10 | 350 | FKM | ||
| 199 230 675 | 1" | 25 | 10 | 700 | FKM | ||
| 199 230 676 | 1 1∕4" | 32 | 10 | 1000 | FKM | ||
| 199 230 677 | 1 1∕2" | 40 | 10 | 1600 | FKM | ||
| 199 230 678 | 2" | 50 | 10 | 3100 | FKM | ||
| 199 230 679 | 2 1/2" | 65 | 10 | 5000 | FKM | ||
| 199 230 680 | 3" | 80 | 10 | 7000 | FKM | ||
| 199 230 681 | 4" | 100 | 10 | 11000 | FKM |
