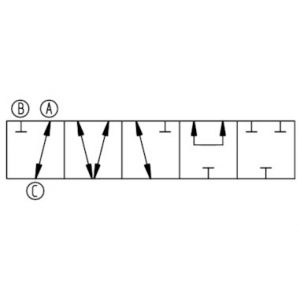

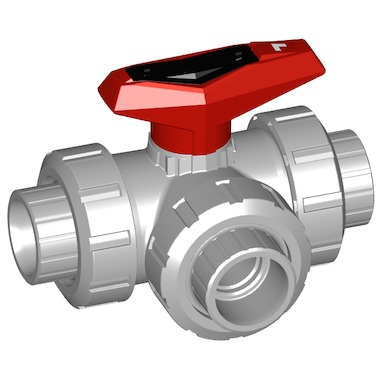

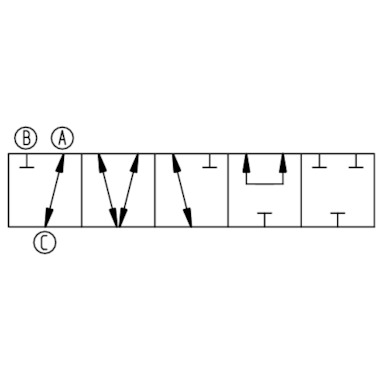

GV PVC-C typ 543 L-port d
- Ďalšie informácie
Ďalšie informácie
| d(mm) | 16, 20, 25, 32, 40, 50, 63 |
|---|---|
| DN | 10, 15, 20, 25, 32, 40, 50 |
| PN(bar) | 10 |
| kv-value (Δp=1 bar;l⁄min) | 1230, 150, 280, 480, 50, 620, 75 |
| Tesnenie | EPDM, FKM |
| Kat. číslo | d(mm) | DN | PN(bar) | kv-value (Δp=1 bar;l⁄min) | Tesnenie | Množstvo | |
|---|---|---|---|---|---|---|---|
| 163 543 001 | 16 | 10 | 10 | 50 | EPDM | ||
| 163 543 002 | 20 | 15 | 10 | 75 | EPDM | ||
| 163 543 003 | 25 | 20 | 10 | 150 | EPDM | ||
| 163 543 004 | 32 | 25 | 10 | 280 | EPDM | ||
| 163 543 005 | 40 | 32 | 10 | 480 | EPDM | ||
| 163 543 006 | 50 | 40 | 10 | 620 | EPDM | ||
| 163 543 007 | 63 | 50 | 10 | 1230 | EPDM | ||
| 163 543 011 | 16 | 10 | 10 | 50 | FKM | ||
| 163 543 012 | 20 | 15 | 10 | 75 | FKM | ||
| 163 543 013 | 25 | 20 | 10 | 150 | FKM | ||
| 163 543 014 | 32 | 25 | 10 | 280 | FKM | ||
| 163 543 015 | 40 | 32 | 10 | 480 | FKM | ||
| 163 543 016 | 50 | 40 | 10 | 620 | FKM | ||
| 163 543 017 | 63 | 50 | 10 | 1230 | FKM |
