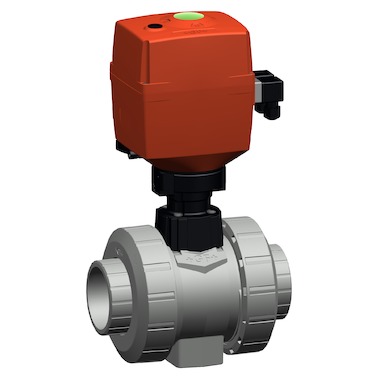

GV PVC-C typ 179 230V d-d
- Ďalšie informácie
Ďalšie informácie
| d(mm) | 16, 20, 25, 32, 40, 50, 63, 75, 90, 110 |
|---|---|
| DN | 10, 100, 125, 15, 20, 25, 32, 40, 50, 65, 80 |
| PN(bar) | 10 |
| kv-value (Δp=1 bar;l⁄min) | 1000, 11000, 1600, 185, 3100, 350, 5000, 70, 700, 7000 |
| EA | EA120, EA25, EA45 |
| Tesnenie | EPDM, FKM |
| Kat. číslo | d(mm) | DN | PN(bar) | kv-value (Δp=1 bar;l⁄min) | EA | Tesnenie | Množstvo | |
|---|---|---|---|---|---|---|---|---|
| 199 179 402 | 16 | 10 | 10 | 70 | EA25 | EPDM | ||
| 199 179 403 | 20 | 15 | 10 | 185 | EA25 | EPDM | ||
| 199 179 404 | 25 | 20 | 10 | 350 | EA25 | EPDM | ||
| 199 179 405 | 32 | 25 | 10 | 700 | EA25 | EPDM | ||
| 199 179 406 | 40 | 32 | 10 | 1000 | EA25 | EPDM | ||
| 199 179 407 | 50 | 40 | 10 | 1600 | EA25 | EPDM | ||
| 199 179 408 | 63 | 50 | 10 | 3100 | EA25 | EPDM | ||
| 199 179 409 | 75 | 65 | 10 | 5000 | EA45 | EPDM | ||
| 199 179 410 | 90 | 80 | 10 | 7000 | EA120 | EPDM | ||
| 199 179 411 | 110 | 100 | 10 | 11000 | EA120 | EPDM | ||
| 199 179 412 | 16 | 10 | 10 | 70 | EA25 | FKM | ||
| 199 179 413 | 20 | 15 | 10 | 185 | EA25 | FKM | ||
| 199 179 414 | 25 | 20 | 10 | 350 | EA25 | FKM | ||
| 199 179 415 | 32 | 25 | 10 | 700 | EA25 | FKM | ||
| 199 179 416 | 40 | 32 | 10 | 1000 | EA25 | FKM | ||
| 199 179 417 | 50 | 40 | 10 | 1600 | EA25 | FKM | ||
| 199 179 418 | 63 | 50 | 10 | 3100 | EA25 | FKM | ||
| 199 179 419 | 75 | 65 | 10 | 5000 | EA45 | FKM | ||
| 199 179 420 | 90 | 80 | 10 | 7000 | EA120 | FKM | ||
| 199 179 421 | 110 | 100 | 10 | 11000 | EA120 | FKM |
