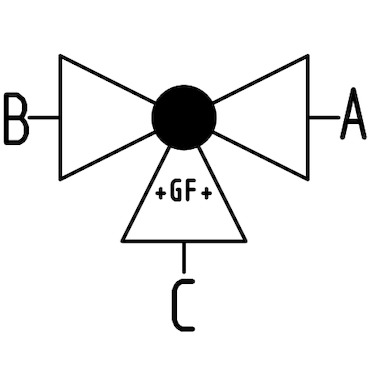

Guľový ventil Typ 286 PP-H L-vŕtanie FC polyfúzne do tvarovky bez núdzovej ručnej páky
- Ďalšie informácie
Ďalšie informácie
| d(mm) | 16, 20, 25, 32, 40, 50, 63 |
|---|---|
| DN | 10, 15, 20, 25, 32, 40, 50 |
| PN(bar) | 10 |
| kv-value (Δp=1 bar;l⁄min) | 1230, 150, 280, 480, 50, 620, 75 |
| Tesnenie | EPDM, FKM |
| Kat. číslo | d(mm) | DN | PN(bar) | kv-value (Δp=1 bar;l⁄min) | Tesnenie | Množstvo | |
|---|---|---|---|---|---|---|---|
| 199 286 002 | 16 | 10 | 10 | 50 | EPDM | ||
| 199 286 003 | 20 | 15 | 10 | 75 | EPDM | ||
| 199 286 004 | 25 | 20 | 10 | 150 | EPDM | ||
| 199 286 005 | 32 | 25 | 10 | 280 | EPDM | ||
| 199 286 006 | 40 | 32 | 10 | 480 | EPDM | ||
| 199 286 007 | 50 | 40 | 10 | 620 | EPDM | ||
| 199 286 008 | 63 | 50 | 10 | 1230 | EPDM | ||
| 199 286 012 | 16 | 10 | 10 | 50 | FKM | ||
| 199 286 013 | 20 | 15 | 10 | 75 | FKM | ||
| 199 286 014 | 25 | 20 | 10 | 150 | FKM | ||
| 199 286 015 | 32 | 25 | 10 | 280 | FKM | ||
| 199 286 016 | 40 | 32 | 10 | 480 | FKM | ||
| 199 286 017 | 50 | 40 | 10 | 620 | FKM | ||
| 199 286 018 | 63 | 50 | 10 | 1230 | FKM |
