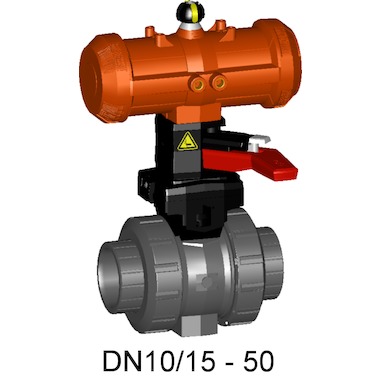

GV typ 230 FO Rp-Rp
- Ďalšie informácie
Ďalšie informácie
| Rp | 1 1/4", 1 1∕2", 1", 1/2", 2", 3/4", 3/8" |
|---|---|
| DN | 10, 100, 15, 20, 25, 32, 40, 50, 65, 80 |
| PN(bar) | 10 |
| kv-value (Δp=1 bar;l⁄min) | 1000, 11000, 1600, 185, 3100, 350, 5000, 70, 700, 7000 |
| Tesnenie | EPDM, FKM |
| Kat. číslo | Rp | DN | PN(bar) | kv-value (Δp=1 bar;l⁄min) | Tesnenie | Množstvo | |
|---|---|---|---|---|---|---|---|
| 199 230 382 | 3/8" | 10 | 10 | 70 | EPDM | ||
| 199 230 383 | 1/2" | 15 | 10 | 185 | EPDM | ||
| 199 230 384 | 3/4" | 20 | 10 | 350 | EPDM | ||
| 199 230 385 | 1" | 25 | 10 | 700 | EPDM | ||
| 199 230 386 | 1 1/4" | 32 | 10 | 1000 | EPDM | ||
| 199 230 387 | 1 1∕2" | 40 | 10 | 1600 | EPDM | ||
| 199 230 388 | 2" | 50 | 10 | 3100 | EPDM | ||
| 199 230 392 | 3/8" | 10 | 10 | 70 | FKM | ||
| 199 230 393 | 1/2" | 15 | 10 | 185 | FKM | ||
| 199 230 394 | 3/4" | 20 | 10 | 350 | FKM | ||
| 199 230 395 | 1" | 25 | 10 | 700 | FKM | ||
| 199 230 396 | 1 1/4" | 32 | 10 | 1000 | FKM | ||
| 199 230 397 | 1 1∕2" | 40 | 10 | 1600 | FKM | ||
| 199 230 398 | 2" | 50 | 10 | 3100 | FKM |
