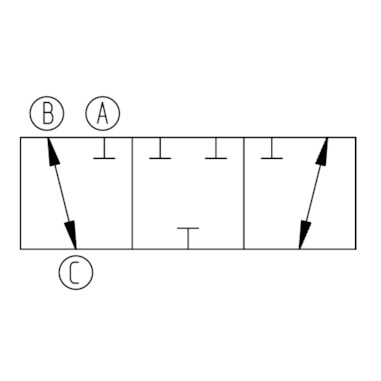

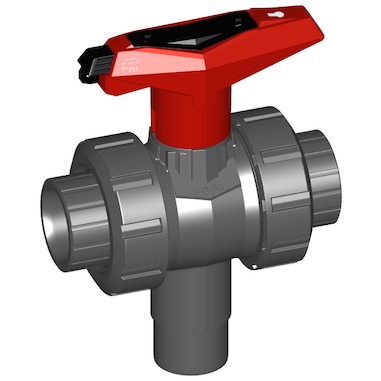

GV typ 543 L-port d
- Popis
- Ďalšie informácie
Popis
• uzamykatelná páka
Ďalšie informácie
| d(mm) | 16, 20, 25, 32, 40, 50, 63 |
|---|---|
| DN | 10, 15, 20, 25, 32, 40, 50 |
| PN(bar) | 10 |
| kv-value (Δp=1 bar;l⁄min) | 1293, 146, 260, 437, 49, 667, 77 |
| Tesnenie | EPDM, FKM |
| Kat. číslo | d(mm) | DN | PN(bar) | kv-value (Δp=1 bar;l⁄min) | Tesnenie | Množstvo | |
|---|---|---|---|---|---|---|---|
| 161 543 501 | 16 | 10 | 10 | 49 | EPDM | ||
| 161 543 502 | 20 | 15 | 10 | 77 | EPDM | ||
| 161 543 503 | 25 | 20 | 10 | 146 | EPDM | ||
| 161 543 504 | 32 | 25 | 10 | 260 | EPDM | ||
| 161 543 505 | 40 | 32 | 10 | 437 | EPDM | ||
| 161 543 506 | 50 | 40 | 10 | 667 | EPDM | ||
| 161 543 507 | 63 | 50 | 10 | 1293 | EPDM | ||
| 161 543 511 | 16 | 10 | 10 | 49 | FKM | ||
| 161 543 512 | 20 | 15 | 10 | 77 | FKM | ||
| 161 543 513 | 25 | 20 | 10 | 146 | FKM | ||
| 161 543 514 | 32 | 25 | 10 | 260 | FKM | ||
| 161 543 515 | 40 | 32 | 10 | 437 | FKM | ||
| 161 543 516 | 50 | 40 | 10 | 667 | FKM | ||
| 161 543 517 | 63 | 50 | 10 | 1293 | FKM |
