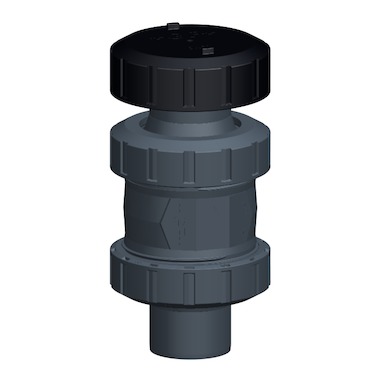

Ventilating and bleed valve Type 591 PVC-U With solvent cement spigots metric
- Ďalšie informácie
Ďalšie informácie
| d(mm) | 16, 20, 25, 32, 40, 50, 63, 75, 90, 110 |
|---|---|
| DN | 10, 100, 15, 20, 25, 32, 40, 50, 65, 80 |
| PN(bar) | 16 |
| Tesnenie | EPDM, FKM |
| Kat. číslo | d(mm) | DN | PN(bar) | Tesnenie | Množstvo | |
|---|---|---|---|---|---|---|
| 161 591 041 | 16 | 10 | 16 | EPDM | ||
| 161 591 042 | 20 | 15 | 16 | EPDM | ||
| 161 591 043 | 25 | 20 | 16 | EPDM | ||
| 161 591 044 | 32 | 25 | 16 | EPDM | ||
| 161 591 045 | 40 | 32 | 16 | EPDM | ||
| 161 591 046 | 50 | 40 | 16 | EPDM | ||
| 161 591 047 | 63 | 50 | 16 | EPDM | ||
| 161 591 048 | 75 | 65 | 16 | EPDM | ||
| 161 591 049 | 90 | 80 | 16 | EPDM | ||
| 161 591 050 | 110 | 100 | 16 | EPDM | ||
| 161 591 051 | 16 | 10 | 16 | FKM | ||
| 161 591 052 | 20 | 15 | 16 | FKM | ||
| 161 591 053 | 25 | 20 | 16 | FKM | ||
| 161 591 054 | 32 | 25 | 16 | FKM | ||
| 161 591 055 | 40 | 32 | 16 | FKM | ||
| 161 591 056 | 50 | 40 | 16 | FKM | ||
| 161 591 057 | 63 | 50 | 16 | FKM | ||
| 161 591 058 | 75 | 65 | 16 | FKM | ||
| 161 591 059 | 90 | 80 | 16 | FKM | ||
| 161 591 060 | 110 | 100 | 16 | FKM |
