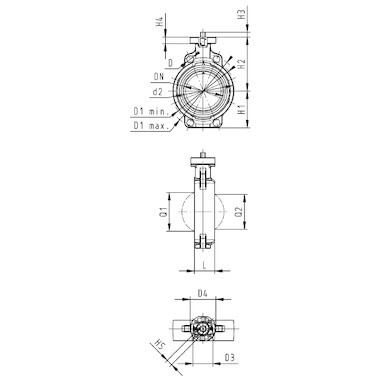

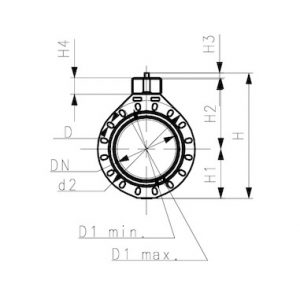

Uzatváracia klapka Typ 567 PP-H Bare shaft
- Ďalšie informácie
Ďalšie informácie
| d(mm) | 355, 400, 450, 500, 630, 63, 75, 90, 110, 140, 160, 225, 280, 315 |
|---|---|
| DN | 100, 125, 150, 200, 250, 300, 350, 400, 450, 50, 500, 600, 65, 80 |
| PN(bar) | 10, 4, 5, 6, 8 |
| kv-value (Δp=1 bar;l⁄min) | 1130, 11500, 115000, 1470, 155000, 16600, 204000, 2200, 265000, 3000, 39600, 51000, 6500, 73000, 90000 |
| Tesnenie | EPDM, FKM, PTFE |
| Kat. číslo | d(mm) | DN | PN(bar) | kv-value (Δp=1 bar;l⁄min) | Tesnenie | Množstvo | |
|---|---|---|---|---|---|---|---|
| 167 567 802 | 63 | 50 | 10 | 1470 | EPDM | ||
| 167 567 803 | 75 | 65 | 10 | 2200 | EPDM | ||
| 167 567 804 | 90 | 80 | 10 | 3000 | EPDM | ||
| 167 567 805 | 110 | 100 | 10 | 6500 | EPDM | ||
| 167 567 806 | 140 | 125 | 10 | 11500 | EPDM | ||
| 167 567 807 | 160 | 150 | 10 | 16600 | EPDM | ||
| 167 567 808 | 225 | 200 | 10 | 39600 | EPDM | ||
| 167 567 809 | 280 | 250 | 8 | 51000 | EPDM | ||
| 167 567 810 | 315 | 300 | 8 | 73000 | EPDM | ||
| 167 567 811 | 355 | 350 | 6 | 90000 | EPDM | ||
| 167 567 812 | 400 | 400 | 6 | 115000 | EPDM | ||
| 167 567 813 | 450 | 450 | 5 | 155000 | EPDM | ||
| 167 567 814 | 500 | 500 | 4 | 204000 | EPDM | ||
| 167 567 815 | 630 | 600 | 4 | 265000 | EPDM | ||
| 167 567 822 | 63 | 50 | 10 | 1470 | FKM | ||
| 167 567 823 | 75 | 65 | 10 | 2200 | FKM | ||
| 167 567 824 | 90 | 80 | 10 | 3000 | FKM | ||
| 167 567 825 | 110 | 100 | 10 | 6500 | FKM | ||
| 167 567 826 | 140 | 125 | 10 | 11500 | FKM | ||
| 167 567 827 | 160 | 150 | 10 | 16600 | FKM | ||
| 167 567 828 | 225 | 200 | 10 | 39600 | FKM | ||
| 167 567 829 | 280 | 250 | 8 | 51000 | FKM | ||
| 167 567 830 | 315 | 300 | 8 | 73000 | FKM | ||
| 167 567 831 | 355 | 350 | 6 | 90000 | FKM | ||
| 167 567 832 | 400 | 400 | 6 | 115000 | FKM | ||
| 167 567 833 | 450 | 450 | 5 | 155000 | FKM | ||
| 167 567 834 | 500 | 500 | 4 | 204000 | FKM | ||
| 167 567 835 | 630 | 600 | 4 | 265000 | FKM | ||
| 167 567 840 | 63 | 50 | 10 | 1470 | PTFE | ||
| 167 567 841 | 75 | 65 | 10 | 2200 | PTFE | ||
| 167 567 842 | 90 | 80 | 10 | 3000 | PTFE | ||
| 167 567 843 | 110 | 100 | 10 | 6500 | PTFE | ||
| 167 567 844 | 140 | 125 | 10 | 11500 | PTFE | ||
| 167 567 845 | 160 | 150 | 10 | 16600 | PTFE | ||
| 167 567 846 | 225 | 200 | 10 | 39600 | PTFE | ||
| 167 567 847 | 280 | 250 | 8 | 51000 | PTFE | ||
| 167 567 848 | 315 | 300 | 8 | 73000 | PTFE | ||
| 167 567 849 | 355 | 350 | 6 | 90000 | PTFE | ||
| 167 567 850 | 400 | 400 | 6 | 115000 | PTFE | ||
| 167 567 851 | 450 | 450 | 5 | 155000 | PTFE | ||
| 167 567 852 | 500 | 500 | 4 | 204000 | PTFE | ||
| 167 567 853 | 630 | 600 | 4 | 265000 | PTFE |
