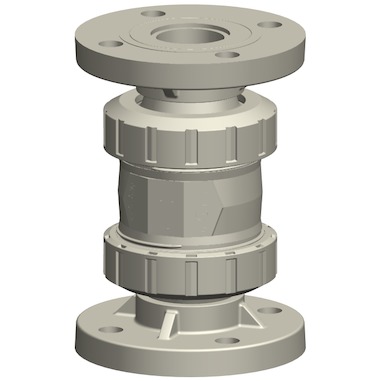

Spätný ventil Typ 561 PP-H s pevnými prírubami
- Ďalšie informácie
Ďalšie informácie
| d(mm) | 20, 25, 32, 40, 50, 63 |
|---|---|
| DN | 15, 20, 25, 32, 40, 50 |
| PN(bar) | 10 |
| kv-value (Δp=1 bar;l⁄min) | 1080, 1670, 180, 380, 460, 850 |
| Tesnenie | EPDM, FKM |
| Kat. číslo | d(mm) | DN | PN(bar) | kv-value (Δp=1 bar;l⁄min) | Tesnenie | Množstvo | |
|---|---|---|---|---|---|---|---|
| 167 561 182 | 20 | 15 | 10 | 180 | EPDM | ||
| 167 561 183 | 25 | 20 | 10 | 380 | EPDM | ||
| 167 561 184 | 32 | 25 | 10 | 460 | EPDM | ||
| 167 561 185 | 40 | 32 | 10 | 850 | EPDM | ||
| 167 561 186 | 50 | 40 | 10 | 1080 | EPDM | ||
| 167 561 187 | 63 | 50 | 10 | 1670 | EPDM | ||
| 167 561 192 | 20 | 15 | 10 | 180 | FKM | ||
| 167 561 193 | 25 | 20 | 10 | 380 | FKM | ||
| 167 561 194 | 32 | 25 | 10 | 460 | FKM | ||
| 167 561 195 | 40 | 32 | 10 | 850 | FKM | ||
| 167 561 196 | 50 | 40 | 10 | 1080 | FKM | ||
| 167 561 197 | 63 | 50 | 10 | 1670 | FKM |
