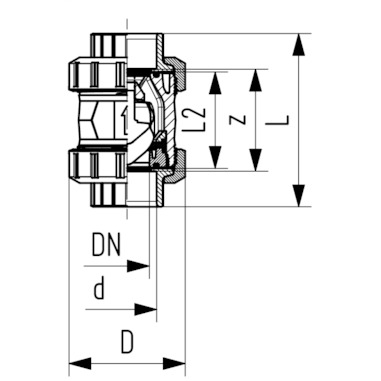

Spätný ventil Typ 561 PP-H polyfúzne
- Ďalšie informácie
Ďalšie informácie
| d(mm) | 16, 20, 25, 32, 40, 50, 63, 75, 90, 110 |
|---|---|
| DN | 10, 100, 15, 20, 25, 32, 40, 50, 65, 80 |
| PN(bar) | 10 |
| kv-value (Δp=1 bar;l⁄min) | 1080, 1670, 180, 190, 2950, 3600, 380, 4150, 460, 850 |
| Tesnenie | EPDM, FKM |
| Kat. číslo | d(mm) | DN | PN(bar) | kv-value (Δp=1 bar;l⁄min) | Tesnenie | Množstvo | |
|---|---|---|---|---|---|---|---|
| 167 561 001 | 16 | 10 | 10 | 190 | EPDM | ||
| 167 561 002 | 20 | 15 | 10 | 180 | EPDM | ||
| 167 561 003 | 25 | 20 | 10 | 380 | EPDM | ||
| 167 561 004 | 32 | 25 | 10 | 460 | EPDM | ||
| 167 561 005 | 40 | 32 | 10 | 850 | EPDM | ||
| 167 561 006 | 50 | 40 | 10 | 1080 | EPDM | ||
| 167 561 007 | 63 | 50 | 10 | 1670 | EPDM | ||
| 167 561 008 | 75 | 65 | 10 | 2950 | EPDM | ||
| 167 561 009 | 90 | 80 | 10 | 3600 | EPDM | ||
| 167 561 010 | 110 | 100 | 10 | 4150 | EPDM | ||
| 167 561 011 | 16 | 10 | 10 | 190 | FKM | ||
| 167 561 012 | 20 | 15 | 10 | 180 | FKM | ||
| 167 561 013 | 25 | 20 | 10 | 380 | FKM | ||
| 167 561 014 | 32 | 25 | 10 | 460 | FKM | ||
| 167 561 015 | 40 | 32 | 10 | 850 | FKM | ||
| 167 561 016 | 50 | 40 | 10 | 1080 | FKM | ||
| 167 561 017 | 63 | 50 | 10 | 1670 | FKM | ||
| 167 561 018 | 75 | 65 | 10 | 2950 | FKM | ||
| 167 561 019 | 90 | 80 | 10 | 3600 | FKM | ||
| 167 561 020 | 110 | 100 | 10 | 4150 | FKM |
