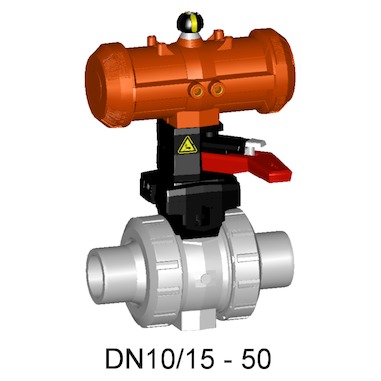

GV PVC-C typ 230 DA d-d do tvarovky
- Popis
- Ďalšie informácie
Popis
s núdzovou ručnou pákou
Ďalšie informácie
| d(mm) | 16, 20, 25, 32, 40, 50, 63 |
|---|---|
| DN | 10, 100, 15, 20, 25, 32, 40, 50 |
| PN(bar) | 10 |
| kv-value (Δp=1 bar;l⁄min) | 1000, 1600, 185, 3100, 350, 70, 700 |
| Tesnenie | EPDM, FKM |
| Kat. číslo | d(mm) | DN | PN(bar) | kv-value (Δp=1 bar;l⁄min) | Tesnenie | Množstvo | |
|---|---|---|---|---|---|---|---|
| 199 230 502 | 16 | 10 | 10 | 70 | EPDM | ||
| 199 230 503 | 20 | 15 | 10 | 185 | EPDM | ||
| 199 230 504 | 25 | 20 | 10 | 350 | EPDM | ||
| 199 230 505 | 32 | 25 | 10 | 700 | EPDM | ||
| 199 230 506 | 40 | 32 | 10 | 1000 | EPDM | ||
| 199 230 507 | 50 | 40 | 10 | 1600 | EPDM | ||
| 199 230 508 | 63 | 50 | 10 | 3100 | EPDM | ||
| 199 230 512 | 16 | 10 | 10 | 70 | FKM | ||
| 199 230 513 | 20 | 15 | 10 | 185 | FKM | ||
| 199 230 514 | 25 | 20 | 10 | 350 | FKM | ||
| 199 230 515 | 32 | 25 | 10 | 700 | FKM | ||
| 199 230 516 | 40 | 32 | 10 | 1000 | FKM | ||
| 199 230 517 | 50 | 40 | 10 | 1600 | FKM | ||
| 199 230 518 | 63 | 50 | 10 | 3100 | FKM |
